Affine Royan Black Complete Bathroom Suite with Single Ended Bath - 1700mm

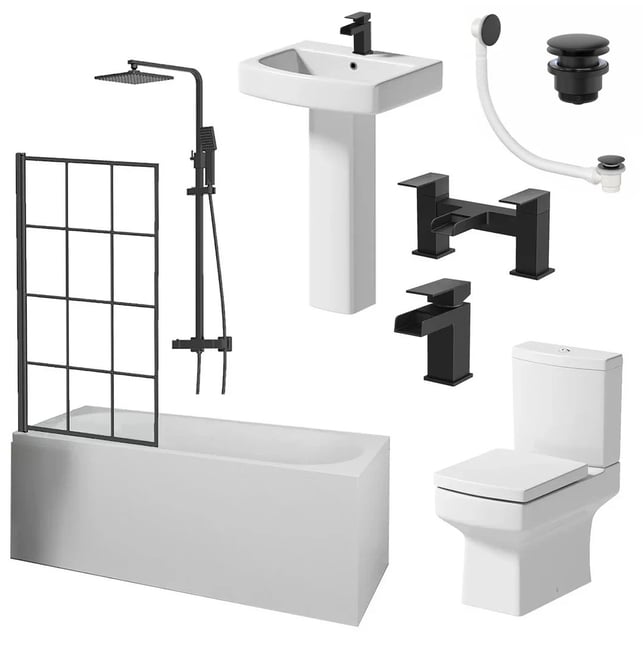

What’s Included

• Affine Royan close coupled toilet & soft close seat
• Ceramica single-ended curved bath
• Black grid shower screen
• Essentials white gloss bath side panel 1700mm (end panel not included)
• Affine Royan full pedestal basin
• Merano thermostatic square bar mixer shower with adjustable & fixed head - black
• Architeckt Dakota bath mixer waterfall tap - black
• Architeckt Dakota basin mixer waterfall tap - black
• Architeckt pop-up bath waste and overflow - black
• Architeckt slotted sprung basin waste - black

Contemporary Single-Ended Shower Bath

A truly versatile design, this single-ended bath is the perfect choice for a relaxing soak after a long day. Boasting a modern design with a white finish, this single ended bath is made from scratch-resistant and UV-resistant Lucite sheet acrylic and comes pre-drilled for a centre waste and overflow.

• Modern design with a white finish
• Made from Lucite sheet acrylic
• Fully encapsulated 18mm baseboard
• Comes pre-drilled for a centre waste and overflow
• 135-litre capacity
• Leg set included

Black Grid Bath Screen

Also featuring a stylish black grid bath screen, you can ensure any water splashes from a shower or bath are kept within the bath.

• 6mm thick safety glass bath screen
• 1400mm tall bath screen
• 180-degree pivot on bath screen

Side Panel Included

This stunning bath also comes with a sleek side panel, perfect for hiding any unsightly pipework beneath your bath.

• White gloss finish
• Constructed from high impact polystyrene
• Easily cut to size

Close Coupled Toilet with Soft Close Seat

This porcelain toilet features a vitreous china coating and has a versatile gloss-white finish. It also features a practical soft close seat, preventing unwanted loud bangs from your toilet seat dropping down.

• Easy clean ceramic
• Toilet fixings included
• Dual flush cistern (4/6L)
• WRAS approved
• Soft close toilet seat

White Ceramic Full Pedestal Basin

This classic full pedestal basin with a single tap hole is the perfect fit for any modern bathroom. Made with vitreous china is easy to clean and resistant to stains, scratches and chips, ensuring your basin will look its best for longer.

Thermostatic Two-Outlet Bar Shower

Two outlet bar showers come with two separate shower heads that you can easily switch between using a divertor, allowing you to create the most relaxing shower that best suits your mood.

• Thermostatic temperature control
• Stylish exposed mixer shower valve
• Modern black finish
• Suitable for high pressure & combi systems
• 220mm square, adjustable drencher head
• Square bar valve
• Brass body
• Suitable for high-pressure and combination boiler water systems

Flow Rates (l/min):

Main Head Flow Rates:

• 0.5 Bar – 5.4 Litres
• 1.0 Bar – 8.2 Litres
• 3.0 Bar – 14.4 Litres
• 5.0 Bar – 18.4 Litres

Handset Flow Rates:

• 0.5 Bar – 4.4 Litres
• 1.0 Bar – 6.4 Litres
• 3.0 Bar – 11.6 Litres
• 5.0 Bar – 15.6 Litres

Architeckt Dakota Bath and Basin Mixer Waterfall Taps

This bathroom suite also includes the Architeckt Dakota bath and basin mixer waterfall taps, designed to complete the thermostatic shower and create a spa experience in your home.

• Waterfall spout
• Ceramic cartridges
• Stylish, square design
• Flexible tails for simpler installation

Technical Information:

• Inlet connection size: F1/2*M10*1*400mm

Basin Mixer Flow Rates (l/min):

• 0.5 bar: 8.4
• 1 bar: 11.7
• 3 bar: 20.1
