Affine Royan Brass Complete Bathroom Suite with Single Ended Bath - 1700mm

Contemporary Single-Ended Shower Bath

A truly versatile design, this single-ended shower bath is the perfect destination for either a relaxing bath or shower.

• Modern design with a white finish
• Made from Lucite sheet acrylic
• Fully encapsulated 18mm baseboard
• Comes pre-drilled for a centre waste and overflow
• 135-litre capacity
• Leg set included

Brushed Brass Bath Screen

Also featuring a stylish brushed brass bath screen, you can ensure any water splashes from a shower or bath are kept within the bath.

• 6mm thick safety glass bath screen
• Easy clean glass
• 1400mm tall bath screen
• Reversible wall fixings
• Screen is not hinged

Side Panel Included

This stunning bath also comes with a sleek side panel, perfect for hiding any unsightly pipework beneath your bath.

• White gloss finish
• Constructed from high impact polystyrene
• Easily cut to size

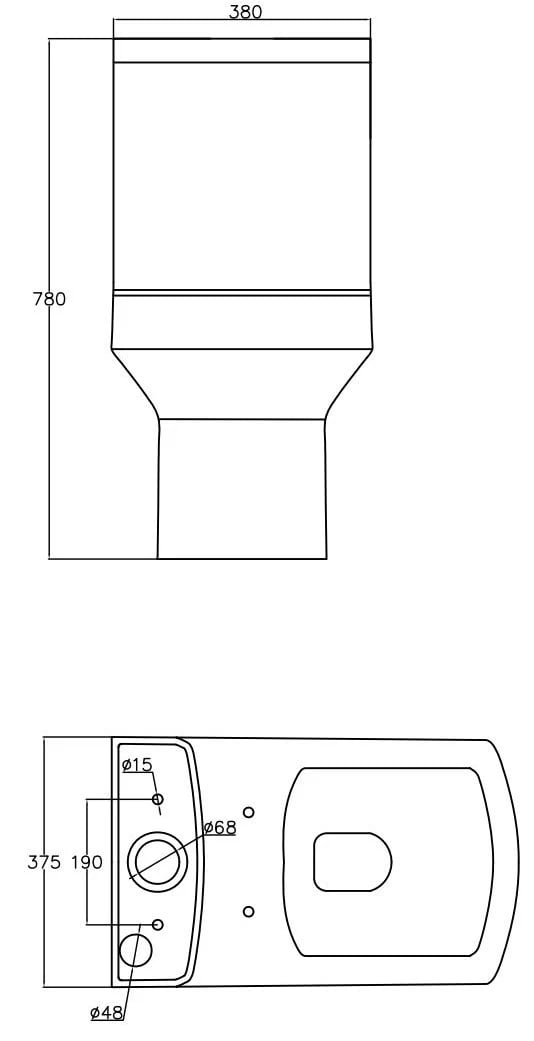

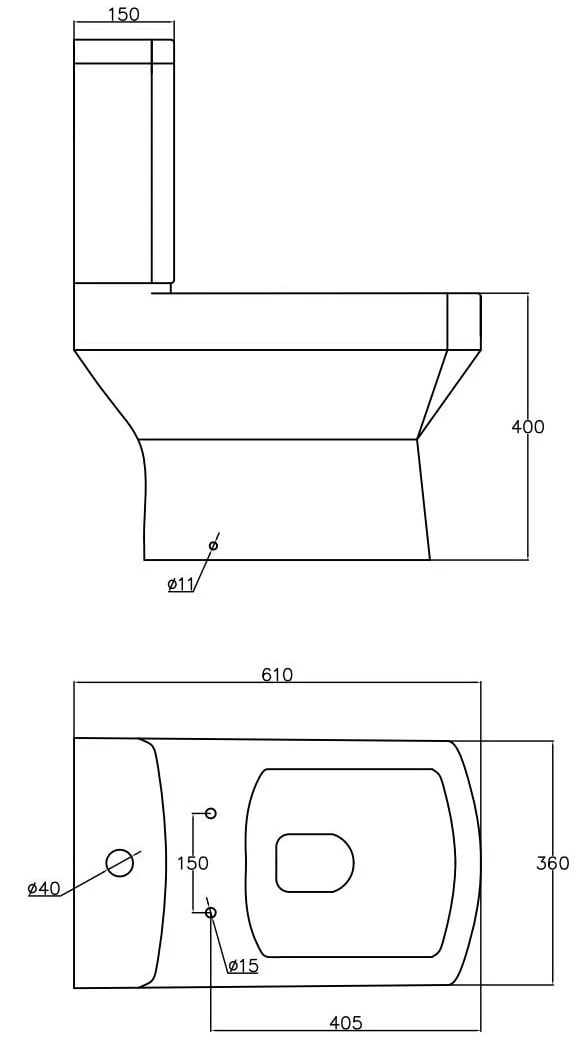

Close Coupled Toilet with Soft Close Seat

This porcelain toilet features a vitreous china coating and has a versatile gloss-white finish. It also features a practical soft close seat, preventing unwanted loud bangs from your toilet seat dropping down.

• Easy clean ceramic
• Toilet fixings included
• Dual flush cistern
• WRAS approved

White Ceramic Full Pedestal Basin

This classic full pedestal basin with a single tap hole is the perfect fit for any modern bathroom. Made with vitreous china is easy to clean and resistant to stains, scratches and chips, ensuring your basin will look its best for longer.

Thermostatic Two-Outlet Cool Touch Bar Shower

Two outlet bar showers come with two separate shower heads that you can easily switch between using a diverter, allowing you to create the most relaxing shower that best suits your mood. The diverter, temperature, and flow controls are all situated within the bar valve to make fine-tuning your ideal showering experience straight forward and hassle-free!

• 200mm overhead shower and handset
• Cool touch and thermostatic control for extra safety
• Contemporary styling and brushed brass finish
• Two-outlet bar shower
• Adjustable drencher head

Technical Information

• Minimum working pressure: 0.5 Bar
• Maximum working pressure: 5.0 Bar
• Suitable for all shower systems
• Shower hose length: 1500mm
• Pipe centre size: 150mm
• Inlet connection size 15.2mm
• Plastic & brass tap body, ABS handle, ABS shower handset, ABS head shower

Overhead Flow Rates (l/min)

• 0.5bar(L/MIN): 4.2
• 1bar(L/MIN) 6.6
• 3bar(L/MIN) 12.2
• 5bar(L/MIN) 15.8

Handset Flow Rates (l/min)

• 0.5bar(L/MIN) 3.6
• 1bar(L/MIN) 5.4
• 3bar(L/MIN) 9.7
• 5bar(L/MIN) 12.5

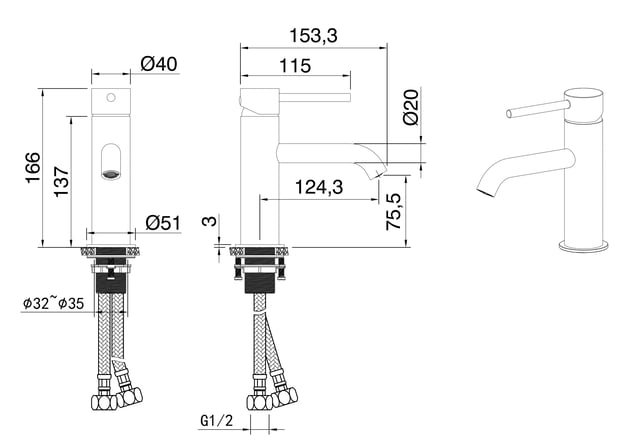

Matching Waterfall Taps

Providing an elegant cascade of water, the matching brushed brass basin and bath mixer taps are the perfect fit for any contemporary bathroom.

• Stylish brass mixer tap
• 0.2–5 bar pressure
• Fixed spout
• Contemporary round design
• Brass finish

Basin Tap Flow Rates (l/min):

• 0.2 bar: 4.7
• 0.5 bar: 7.1
• 1 bar: 9.7
• 2 bar: 13.6
• 3 bar: 16.6
• 5 bar: 21.3

Bath Tap Flow Rates (l/min):

Flow Rates (l/min):

• 0.2 bar: 15.4
• 0.5 bar: 23.2
• 1 bar: 31.9
• 2 bar: 44.6
• 3 bar: 54.8
• 5 bar: 69.7
