Diamond Frameless Hinged Shower Enclosure 900 x 800mm with Raised Tray and Waste - 8mm

Hinged Shower Door

Do you want a shower enclosure with maximum accessibility? Then a hinged shower door is an excellent choice. Designed for larger bathrooms and with the greatest level of accessibility into and out of the shower than any other type of shower door, hinged doors give you the greatest entry width while never compromising on designer-level luxury and sleek, polished style.

Frameless Design

Frameless shower doors have a high-end look and a minimalistic design style, requiring only wall channels to fix to your bathroom walls. They make your bathroom look and feel bigger while taking up the same amount of space as a framed enclosure.

Easy Clean Glass Panels

A special coating has been applied to the glass panels to ensure cleaning is fast and easy. A simple wipe-down will bring back crystal clear glass time and time again.

Concealed Fixings for a Minimalist Installation

The innovative cover strip that comes with these enclosures conceals all of the screws and fixings neatly for a flawless look. The cover strip is extremely easy to secure to the frame and gives the whole bathroom a high-end look of perfection.

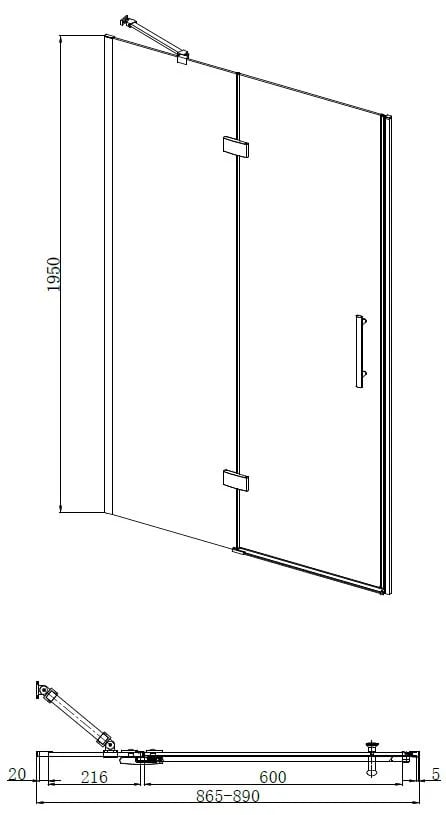

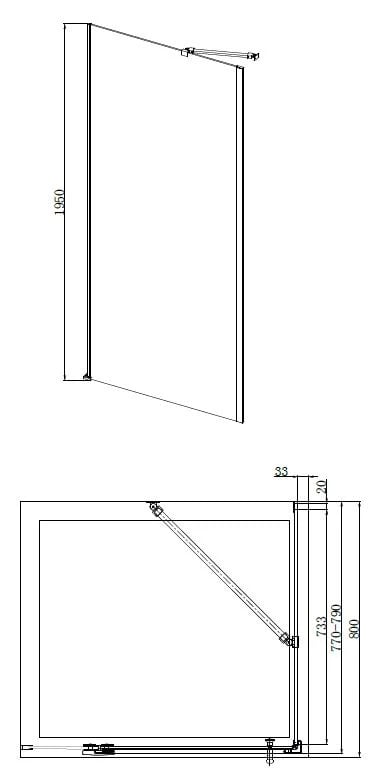

Extra Tall 1950mm Glass Panels

Standard shower enclosure panels tend to be 1750 - 1800mm high, but these are a full 1950mm high giving you extra splash protection and a fantastic high-end look.

8mm Thick Thermally Toughened Safety Glass

The 8mm glass used is of the highest standard. It conforms to EN12150-1 meaning that it's been rigorously tested and thermally toughened for superior safety and strength.

Water-Tight Magnetic Closing Mechanism

The last thing you want when using a shower is for water to escape the enclosure. These doors feature a watertight magnetic closing mechanism that secures the doors to stop any spray from your shower from escaping.

Reversible Wall Fixings

These enclosure doors have reversible wall fixings, allowing you to choose whether you'd like your door to open out to the left or to the right, giving you flexibility on your placement.

Hydrolux Raised Shower Tray with Waste

Our shower trays are built with durability and performance in mind, with each one tested to support up to 4000kg, whether used with or without our own supplied riser leg kits. A typical 1200 x 800mm tray weighs just 18kg, making it significantly lighter than many stone resin options.

WRAS Approvals

In terms of standards and sustainability, our trays are fully compliant with all UK and EU requirements, including CE, EN 14527, EN 198, and REACH regulations. While WRAS certification isn’t required for trays, our acrylic sheet is manufactured to EN 263 for domestic use.

Flax Particle Board

Unlike some alternatives, we don’t use chipboard or other wood-based reinforcement materials – instead, we use Flax Particle Board, a more environmentally friendly alternative that offers strength without compromising on sustainability.

While it is possible to cut an acrylic capped tray, please note a cut edge can potentially be exposed to water ingress.

• Easy plumb shower tray with waste
• 60% lighter than stone resin trays
• Can be easily cut to size
• Universal shower enclosure compatibility
• Riser kit adds 95mm to the height of the tray
• 10 year guarantee for peace of mind

Hi-Flow Waste

• Standard 40mm connection
• A flow of 32 litres per minute
• A unique vented dome on the waste allows a high flow of water to pass through
• An inner unit allows a quick-release
• Also includes an offset elbow for ease of installation
• Size of waste: 90mm
• Chrome top
• Complies with BSEN1329/1:2000 and BSEN1451/1:2000 standards

Important installation information: Please note, it's important to consider the minimum and maximum adjustment measurements. The enclosure doesn't sit flush to the side of a shower tray as this allows space for tiling.
