Diamond Frameless Sliding Shower Enclosure 1000 x 900mm with Raised Tray - 8mm Black

Space-Saving Sliding Shower Door

This sliding door shower door effortlessly fits into large spaces to create a comfortable showering space. These stylish, sliding doors glide across the rail on rollers, thus creating a space-saving solution for your bathroom as the door doesn't need to open into the room itself.

Concealed Fixings for a Minimalist Installation

The innovative cover strip that comes with these enclosures conceals all of the screws and fixings neatly for a flawless look. The cover strip is extremely easy to secure to the frame and gives the whole bathroom a high end look of perfection.

Easy Clean Glass Panels

A special coating has been applied to the glass panels to ensure cleaning is fast and easy. A simple wipe-down will bring back crystal clear glass time and time again.

Extra Tall 1950mm Glass Panels

Standard shower enclosure panels tend to be 1750 - 1800mm high, but these are a full 1950mm high giving you extra splash protection and a fantastic high-end look.

Flax Particle Board

Made from Flax Particle Board, it's more environmentally friendly compared to wood and has been tested to 4000kg, with or without our own supplied leg kits.

Cut to Fit

It's possible to cut an acrylic capped tray, however we don't recommend this, since a cut edge is then potentially exposed to water ingress.

8mm Thick Thermally Toughened Safety Glass

The 8mm glass used is of the highest standard. It conforms to EN12150-1, meaning it has been rigorously tested and thermally toughened for superior safety and strength.

Top & Bottom-Mounted Door Rollers

These 8mm shower doors need to operate easily and smoothly which is why they’re fitted with high-quality rollers mounted at the top and bottom of the doors. They use stainless steel & aerospace-grade plastic parts to create a set of rollers that are silky smooth, they even have a quick-release mechanism on the bottom rollers, for easy cleaning of the panels.

Water-Tight Magnetic Closing Mechanism

The last thing you want when using a shower is for water to escape the enclosure. These doors feature a watertight magnetic closing mechanism that secures the doors to stop any spray from your shower from escaping.

WRAS Approval

This shower tray conforms to all UK & EU certification requirements and are REACH compliant. The acrylic sheet is manufactured for domestic purposes according to the European norm EN 263. This shower tray is manufactured and tested in-house and complies with CE and EN European standards such as EN 14527, EN 198, IAPMO Z124 - 2017.

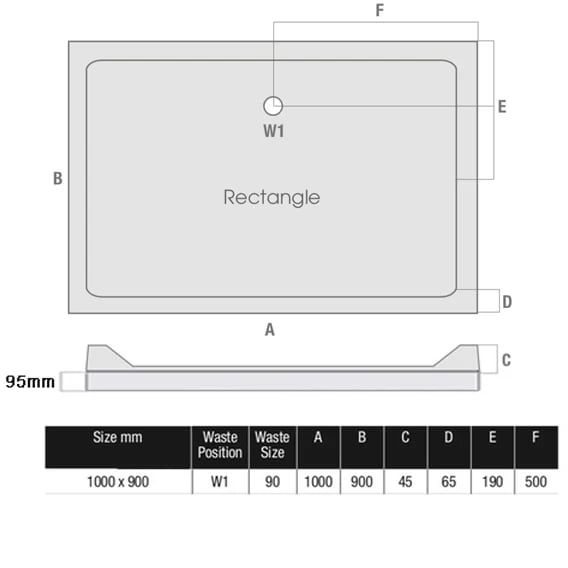

Hydrolux Raised Shower Tray with Waste

Our shower trays are built with durability and performance in mind, with each one tested to support up to 4000kg, whether used with or without our own supplied riser leg kits. A typical 1200 x 800mm tray weighs just 18kg, making it significantly lighter than many stone resin options.

WRAS Approvals

In terms of standards and sustainability, our trays are fully compliant with all UK and EU requirements, including CE, EN 14527, EN 198, and REACH regulations. While WRAS certification isn’t required for trays, our acrylic sheet is manufactured to EN 263 for domestic use.

Flax Particle Board

Unlike some alternatives, we don’t use chipboard or other wood-based reinforcement materials – instead, we use Flax Particle Board, a more environmentally friendly alternative that offers strength without compromising on sustainability.

While it is possible to cut an acrylic capped tray, please note a cut edge can potentially be exposed to water ingress.

• Easy plumb shower tray with waste
• 60% lighter than stone resin trays
• Can be easily cut to size
• Universal shower enclosure compatibility
• Riser kit adds 95mm to the height of the tray
• 10 year guarantee for peace of mind

Hi-Flow Waste

• Standard 40mm connection
• A flow of 32 litres per minute
• A unique vented dome on the waste allows a high flow of water to pass through
• An inner unit allows a quick-release
• Also includes an offset elbow for ease of installation
• Size of waste: 90mm
• Chrome top
• Complies with BSEN1329/1:2000 and BSEN1451/1:2000 standards

Important installation information: Please note, it's important to consider the minimum and maximum adjustment measurements. The enclosure doesn't sit flush to the side of a shower tray as this allows space for tiling.
