Diamond Grid Walk In Shower Screens 1700 x 900mm with Tray - 8mm Black

Black Grid Walk In Screens

Create your ideal showering space by using a walk in panel to section off an area of your walk in enclosure with ease. Featuring a stylish grid design in black, this shower enclosure boasts streamlined, simple-to-clean glass that is thicker than standard panels, bringing you a durable wet room solution.

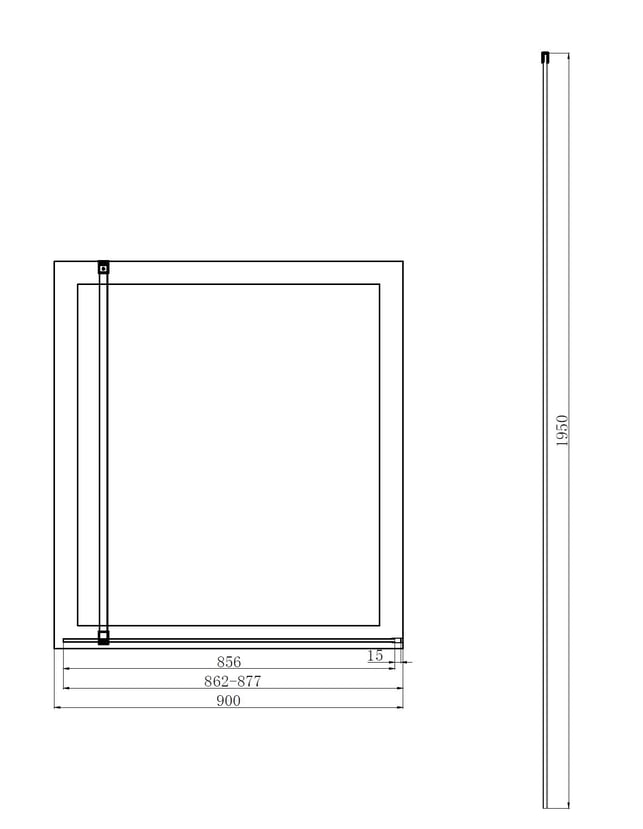

Extra Tall 1950mm Glass Height

Standard shower enclosure panels tend to be 1750 - 1800mm high, but this is a full 1950mm high, giving you extra splash protection and a fantastic high-end look.

8mm Thick Thermally Toughened Safety Glass

The 8mm glass used is of the highest standard. It conforms to EN12150-1 meaning that it's been rigorously tested and thermally toughened for superior safety and strength.

Easy Clean Glass Panels

A special coating has been applied to the glass panels to ensure cleaning is fast and easy. A simple wipe down will bring back crystal clear glass time and time again.

Left or Right Hand Orientation

Wet room screen shower enclosures can be fitted easily into either the left or right hand corners of your bathroom allowing convenient entry no matter the existing layout.

Matching Black Support Arms Included

Supplied with your screens are 1000mm long support arms that attach the screens securely to the wall. They can be cut down for smaller spaces.

CE Marked Product

This product has been CE marked to ensure full compliance with BS EN 14428. This means that not only is it suitable for the UK market but it's been rigorously tested for safety.

Hydrolux Low Profile Shower Tray with Waste

Our shower trays are built with durability and performance in mind, with each one tested to support up to 4000kg, whether used with or without our own supplied riser leg kits. A typical 1200 x 800mm tray weighs just 18kg, making it significantly lighter than many stone resin options.

In terms of standards and sustainability, our trays are fully compliant with all UK and EU requirements, including CE, EN 14527, EN 198, and REACH regulations. While WRAS certification isn’t required for trays, our acrylic sheet is manufactured to EN 263 for domestic use. Unlike some alternatives, we don’t use chipboard or other wood-based reinforcement materials – instead, we use Flax Particle Board, a more environmentally friendly alternative that offers strength without compromising on sustainability.

Moreover, while it is possible to cut an acrylic capped tray, please note a cut edge is potentially exposed to water ingress.

High-Flow Waste

• Rate of 32 litres per minute.
• Standard 40mm connection
• Vented dome to allow higher flow
• Top access for easy maintenance
• Quick-release inner unit for ease of cleaning
• Chrome top

Important installation information: Please note, it's important to consider the minimum and maximum adjustment measurements. The enclosure doesn't sit flush to the side of a shower tray as this allows space for tiling.
