Luxura Offset Quadrant Shower Enclosure 1200 x 900mm with Raised Tray (Right Entry) - 6mm

Important installation information: Please note, it's important to consider the minimum and maximum adjustment measurements. The enclosure doesn't sit flush to the side of a shower tray as this allows space for tiling.

Space-Saving Offset Quadrant Door

For the perfect small bathroom showering solution you need a quadrant shower enclosure. They feature a much reduced footprint size when compared with a rectangular tray and because the tray is smaller the glass panels are smaller giving you much less to wipe down during cleaning. The doors benefit from a super smooth sliding motion and the frame and handles have a polished surface which is easy to clean.

Lightweight, Polished Aluminium Frames

Not only does this enclosure look great with its polished wall profiles and top tracks but it's lightweight too due to its precise aluminium engineering. A major benefit of this is that a lightweight product makes for faster and easier installation.

1850mm Shower Door Height

This shower enclosure has a height of 1850mm giving you both more height to stop water splashing over the top and giving a genuine high-end luxury look.

Smooth Top & Bottom Mounted Rollers

Sliding doors are great provided they function properly and roll smoothly which is exactly what you get with these doors and their top and bottom-mounted roller wheels. Quick release mechanism allow for easy cleaning of the glass panels and with a minimum of 20,000 uses in them you can be sure they won't wear out any time soon!

6mm Thick Safety Glass

6mm glass is the best of both worlds when it comes to this shower enclosure. It provides a sturdy feel while being light enough to function well on rollers or hinges. The 6mm glass is thermally toughened for added strength and safety.

Water-Tight Magnetic Closing Mechanism

The last thing you want when using a shower is for water to escape the enclosure. These doors feature a watertight magnetic closing mechanism that secures the doors to stop any spray from your shower from escaping.

Stylish Easy-Grip Door Handles

The details of a shower enclosure can make all the difference which is why our Hydrolux range comes with beautifully rounded minimalist door handles. They’re easy to fit, easy to get hold of with wet hands and give your bathroom that 5-star hotel look.

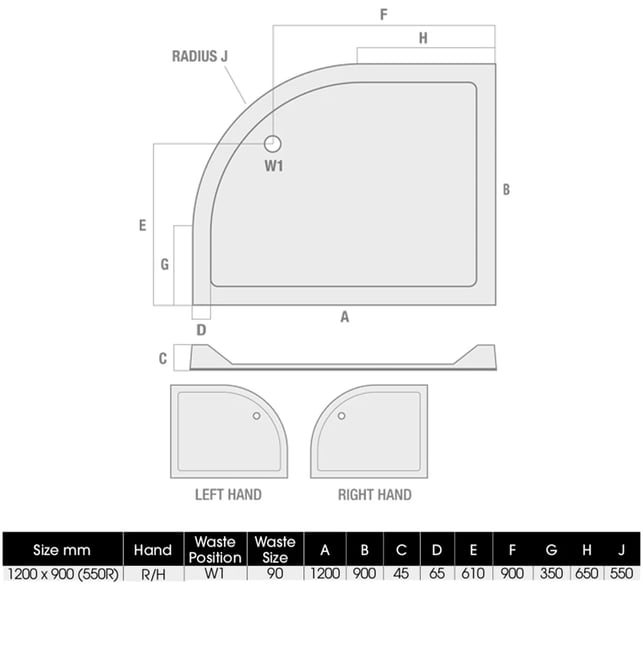

Hydrolux Raised Shower Tray with Waste

Our shower trays are built with durability and performance in mind, with each one tested to support up to 4000kg, whether used with or without our own supplied riser leg kits. A typical 1200 x 800mm tray weighs just 18kg, making it significantly lighter than many stone resin options.

WRAS Approvals

In terms of standards and sustainability, our trays are fully compliant with all UK and EU requirements, including CE, EN 14527, EN 198, and REACH regulations. While WRAS certification isn’t required for trays, our acrylic sheet is manufactured to EN 263 for domestic use.

Flax Particle Board

Unlike some alternatives, we don’t use chipboard or other wood-based reinforcement materials – instead, we use Flax Particle Board, a more environmentally friendly alternative that offers strength without compromising on sustainability.

While it is possible to cut an acrylic capped tray, please note a cut edge can potentially be exposed to water ingress.

• Easy plumb shower tray with waste
• 60% lighter than stone resin trays
• Can be easily cut to size
• Universal shower enclosure compatibility
• Riser kit adds 95mm to the height of the tray
• 10 year guarantee for peace of mind

Hi-Flow Waste

• Standard 40mm connection
• A flow of 32 litres per minute
• A unique vented dome on the waste allows a high flow of water to pass through
• An inner unit allows a quick-release
• Also includes an offset elbow for ease of installation
• Size of waste: 90mm
• Chrome top
• Complies with BSEN1329/1:2000 and BSEN1451/1:2000 standards
